The outsourcing department of ROMOTOP presents available production capacities
at competitive prices and terms in various technologies:

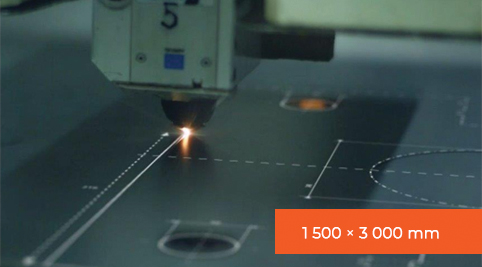

Laser Cutting
- 1× TRUMPF L 3030
- 2× TRUMPF L 3530
- 2× FIBER-L49 L 3030
- 1× TRUMPF TRUMATIC TC 5,000
- Capable of cutting and punching sheet metal up to 1,500×3,000 mm format
- Cutting:
- Mild steel sheets: up to 20 mm thickness
- Stainless steel: up to 20 mm thickness
- Aluminum sheets: up to 20 mm thickness
- Brass and Copper sheets: up to 8 mm thickness
- Nibbling of sheets: up to 3 mm thickness

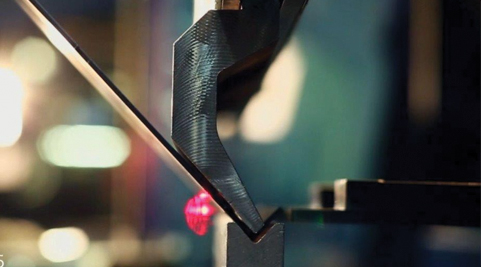

Press Brake Operations
- 3 × TruBend 5170-6-axis rear stop (max. pressing force = 1,700 kN)
- 2 × TruBend 5050 (max. pressing force = 500 kN)
- 1 × TruBend 7036-6-axis rear stop (max. pressing force = 360 kN)
- 1 × TrumaBend V85 (max. pressing force = 850 kN)
- Folding length max. = 3,200 mm
- Max. thickness of bent sheets: up to 8 mm in full length, limited lengths up to 12 mm thickness

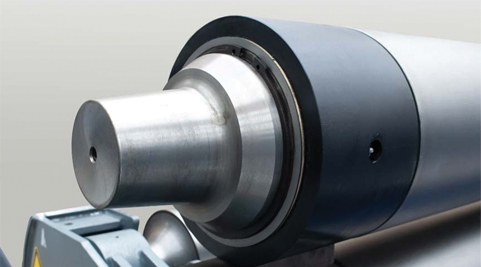

Rolling Machines
- 3 × 2-Cylinder CNC hydraulic rolling machine FACCIN HCU 2050×4p
- 2 × 4-Cylinder CNC hydraulic rolling machine FACCIN SYNCHRO 4HEL-2011
- Max. looping length = 2,000 mm
- Max. thickness of circularized sheets: up to 4 mm
- Smallest circle diameter: 150 mm
- Capability of rolling into a cone

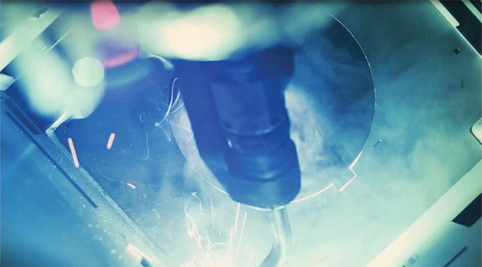

Welding Automation
- 4 x KAWASAKI RA 10L – TIESSE ROBOT
- 1 x CLOOS QRC 350 - FERIER
- 2 x PANASONIC TL-1800WG3 - VALK WELDING
- Max. size of weldment: 800 × 800 × 1,500 mm
- Range of welded material thickness: 1.5 – 12 mm
- Pulse welding capabilities
CNC Machining
- 1 × 3-axis CNC milling machine DMU 80 (Deckel Maho)
- 1 × 5-axis CNC milling machine DMU 100 (Deckel Maho)
- 1 × 5-axis CNC milling machine DMU 125 (Deckel Maho)
- Axis: X = 1,250 mm, Y = 1,000 mm, Z = 1,000 mm
- Max. workpiece weight: approx. 2,500 kg
- Production of models, tools, preparations, including hardening and material
- Programming, grinding
- 1 × CNC long-turn machine K-MX532 TREND (Tajmac-ZPS)
- Diameter range: 5 mm to 30 mm
- CNC material feeder: up to 3,000 mm
Additional Mechanical Production Services
- Riveting, pressing, clinching, circling
- Scoring, MIG, TIG welding, manual and robotic welding of screws and nuts
- Manual and robotic grinding, vibrating
- Blasting, wet painting, powder coating
- Assembly
- Collaborative galvanization and hot-dip galvanizing services available
EU Truck Transport Services
We are eager to explore potential partnerships with you!
